ETP Collection Tanks
ETP Collection Tank Manufacturers
ETP Collection Tanks: Industrial Wastewater Solutions by UK Enviro Systems
ETP Collection Tanks form the backbone of modern effluent treatment plants. These tanks safely hold untreated wastewater before processing. UK Enviro Systems designs superior ETP Storage Tanks for global industries. Our FRP solutions ensure durability and chemical resistance. Therefore, factories trust our tanks for reliable effluent management.
Understanding ETP Collection Tanks
ETP Collection Tanks receive raw industrial effluent. They act as primary holding units. Wastewater enters these tanks from production lines. Subsequently, the tank stores effluent until treatment begins. This process prevents direct environmental discharge. Moreover, proper collection ensures consistent flow to treatment stages.
What Makes an Effluent Collection Tank Essential?
Every Effluent Treatment Plant needs a robust collection point. ETP Collection Tanks balance incoming flow variations. They handle peak discharge moments. Without these tanks, treatment systems face hydraulic overload. Consequently, plant efficiency drops significantly. Our tanks solve this critical issue.
How Industrial ETP Tanks Function
Industrial ETP Tanks receive effluent through gravity or pumps. The tank equalizes flow and composition. This equalization improves downstream treatment. Effluent Storage Vessel also settle heavy solids initially. Lighter materials remain suspended. Then, the homogenized effluent moves to next phases. Thus, the entire plant operates smoothly.
Key Technical Specifications of Our FRP ETP Collection Tanks
UK Enviro Systems manufactures Effluent Collection Tanks with precise engineering. Below are our standard technical parameters.
| Specification | Details |
|---|---|
| Material | FRP (Glass Reinforced Plastic) |
| Capacity Range | 500 liters to 500,000 liters |
| Wall Thickness | 6mm to 25mm (customizable) |
| Operating Temperature | -10°C to +80°C |
| Pressure Rating | Atmospheric to 2 bar |
| Corrosion Allowance | 3mm minimum |
| Design Standards | ASTM D3299, BS 4994 |
| Flange Standards | ANSI B16.5, DIN, BS |
| Surface Finish | UV-resistant gel coat |
| Inspection Ports | 2 to 6 (as required) |
Furthermore, we offer custom dimensions. Our ETP Collection Tanks include level indicators. Each tank has manholes for cleaning. Vent connections prevent pressure buildup. Drain valves simplify maintenance.
Why Choose FRP for Effluent Collection Tanks?
FRP material outperforms conventional options. ETP Collection Tanks made from FRP last decades. Here are the advantages.
Exceptional Chemical Resistance
Industrial effluent contains harsh chemicals. FRP withstands acids, alkalis, and solvents. Steel tanks corrode rapidly. Concrete tanks develop cracks. Conversely, Effluent Collection Tanks from FRP remain unaffected. Therefore, maintenance costs stay low.
Lightweight Yet Strong
FRP offers high strength-to-weight ratio. Our Wastewater Collection Tanks weigh 70% less than steel. Consequently, transportation and installation become easier. Roof structures need less reinforcement. This saves money on civil works.
Seamless and Leak-Proof Construction
We build ETP Collection Tanks using filament winding. This process creates a monolithic structure. No welded seams exist. Hence, leaks never occur. Groundwater contamination becomes impossible. Environmental compliance improves automatically.
Long Service Life
Properly manufactured FRP tanks last over 30 years. Effluent Storage Vessel from UK Enviro Systems resist UV degradation. The gel coat prevents surface erosion. Consequently, you replace tanks less frequently.
Applications Across Industries
Different sectors require ETP Collection Tanks. Our solutions serve numerous industries.
Chemical Manufacturing
Chemical plants produce aggressive effluents. FRP Effluent Treatment Tanks store acidic or caustic wastewater. Our FRP grades handle pH from 1 to 14. Hence, chemical companies rely on us.
Food and Beverage Industry
Food processing generates organic waste. FRP Effluent Treatment Tanks handle high BOD loads. FRP resists bacterial attack. Moreover, the non-porous surface prevents odor retention.
Pharmaceutical Plants
Pharmaceutical effluents include active ingredients. FRP Effluent Treatment Tanks provide safe containment. Our FDA-compliant FRP options exist. These prevent contamination of ground sources.
Textile and Dyeing Units
Textile effluent contains dyes and solvents. Effluent Holding Tanks equalize colored wastewater. Our tanks prevent staining and absorption. The smooth interior surface resists dye adherence. Therefore, cleaning becomes simple.
Metal Finishing and Plating
Metal finishing produces heavy metal-laden effluents. Effluent Holding Tanks store these dangerous streams. FRP withstands high chloride concentrations. Consequently, tank integrity remains intact.
Our Product Details:
Approx. Price: Rs 20 Lakh / Piece

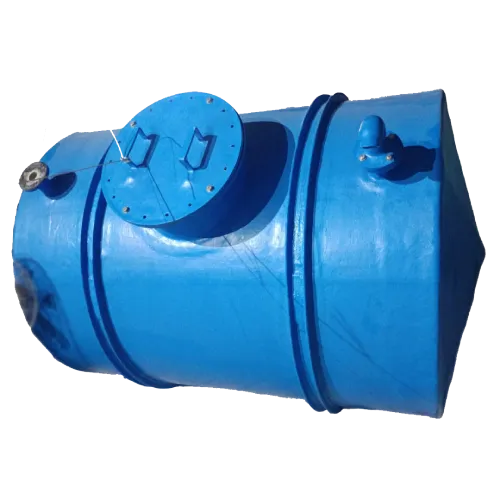

Product Details: Effluent Treatment Plant Tanks
| Capacity | Up to 200KL |
| Material | FRP |
| Style | Horizontal |
Other Details:
1. Supplied with fire retardant and ultra violet resistant additives as per specific requirements.
2. Suitable for using highly corrosive chemicals at maximum temperature up to 150 degree centigrade.
Approx. Price: Rs 15 Rupees / litre

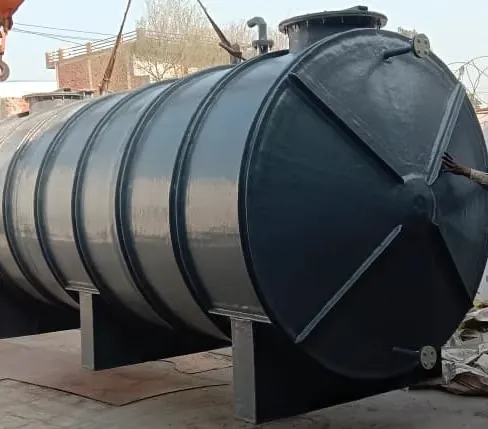

Product Details: ETP Collection Tanks
| Capacity | 150KL-200KL |
| Color | Black |
| Weight | 1-100 t |
Features:
Easy to use
Sturdy construction
Robust in design
The Role of ETP Collection Tank Manufacturers
Choosing the right ETP Collection Tank Manufacturers impacts plant performance. UK Enviro Systems leads this field. We combine engineering excellence with customer focus.
Custom Engineering Capabilities
Standard tanks seldom fit unique layouts. Our team designs Effluent Holding Tanks to your exact specifications. We consider flow rates, retention times, and space constraints. Every tank matches your process requirements perfectly.
Quality Assurance Protocols
Reputable ETP Collection Tank Manufacturers follow strict quality checks. We test each tank hydrostatically. Laminate thickness gets verified ultrasonically. Hardness and cure tests confirm material properties. Hence, you receive defect-free products.
On-Site Fabrication for Large Tanks
Very large FRP ETP Tanks cannot ship easily. We offer on-site fabrication services. Our technicians build tanks directly at your facility. This reduces shipping costs and delays. Therefore, even 500,000-liter projects become feasible.
Compliance with Global Standards
Our FRP ETP Tanks meet ISO 9001:2015 standards. We also follow ASTM, BS, and ASME guidelines. International clients trust our certifications. Consequently, import and customs procedures become smoother.
Ensuring Compliance and Safety for Effluent Holding Tanks
Environmental regulations tighten every year. ETP Collection Tanks must meet legal requirements. Our designs exceed most norms.
Secondary Containment Features
We integrate double-wall construction for hazardous effluents. ETP Storage Tanks with secondary containment prevent leaks. Interstitial spaces allow leak detection. Hence, you achieve zero discharge goals.
Spill Prevention Measures
Overfill protection comes standard. Our ETP Collection Tanks include high-level alarms. Automatic pump shutoffs prevent overflow. Berms and dikes add extra security. Thus, accidental releases become impossible.
Fire Safety Compliance
Some effluents are flammable. We manufacture ETP Storage Tanks with fire-retardant resins. These meet Class 1 fire ratings. Additionally, we offer lightning protection kits. Consequently, your facility stays safe.
Worker Safety Access
Maintenance requires safe entry. Our ETP Collection Tanks feature large manways. Internal ladders and platforms come as options. Confined space protocols get easier to follow. Hence, operator safety improves significantly.
Technical Design Parameters for Effluent Storage Vessels
Proper design extends tank life. Below are critical parameters we consider.
Hydraulic Retention Time
ETP Collection Tanks need adequate volume. We calculate retention times from 4 to 24 hours. Longer retention improves equalization. However, space and cost limit this. Our engineers find the optimal balance.
Mixing and Homogenization
Stagnant zones cause solids settling. Therefore, ETP Storage Tanks include mixing systems. Submersible mixers or recirculation pumps keep contents uniform. This prevents sludge accumulation. Consequently, cleaning frequency reduces.
Ventilation Requirements
Volatile organic compounds (VOCs) need management. Our ETP Collection Tanks have vent scrubbers options. Activated carbon filters treat exiting air. Thus, odor complaints disappear.
Temperature Considerations
Hot effluents affect FRP performance. We use high-temperature resins for such cases. ETP Storage Tanks can handle up to 80°C continuously. For higher temperatures, we offer special liners.
Industrial Wastewater Management with Our ETP Tanks
Effective management starts with reliable storage. ETP Collection Tanks enable systematic treatment.
- Flow Equalization Benefits: Industrial discharge varies hourly. Industrial Effluent Storage Tanks smooth out these peaks. Downstream biological processes receive steady feed. Consequently, treatment efficiency improves by 30% or more.
- Emergency Shutdown Storage: Plant upsets require immediate containment. ETP Collection Tanks hold effluent during repairs. This prevents illegal dumping. Hence, regulatory fines become avoidable.
- Batch Treatment Support: Some processes need batch-wise treatment. FRP Effluent Treatment Tanks store effluent until batch size accumulates. Then, the entire volume gets treated uniformly. Therefore, chemical dosing becomes precise.
FRP Tanks for ETP: Installation Best Practices
Proper installation ensures longevity. Follow these guidelines for ETP Collection Tanks.
- Foundation Requirements: ETP Tanks need flat, level bases. Concrete pads with 150mm thickness work well. Sand cushion layers accommodate minor settlements. We provide foundation drawings with every order.
- Piping Connections: Inlet and outlet pipes require flexibility. Rubber expansion joints prevent stress. ETP Collection Tanks should connect via flanged fittings. Never weld directly onto FRP. Use our pre-fabricated nozzles instead.
- Cathodic Protection: Although FRP doesn’t corrode, metal fittings do. We include sacrificial anodes for all metallic parts. ETP Collection Tanks thus avoid galvanic damage. Stainless steel hardware comes standard.
- Commissioning Procedures: Fill Industrial Effluent Storage Tanks slowly during first use. Check for leaks at every joint. Verify level instrument calibration. Run mixing systems before full operation. Our service team assists commissioning worldwide.
Maintenance Guidelines for Effluent Handling Systems
Regular care extends tank life. Follow these simple steps.
- Quarterly Inspections: Check ETP Collection Tanks for surface cracks. Examine manway gaskets for wear. Verify vent screens are clean. Record all findings in a logbook.
- Annual Deep Cleaning: Empty Wastewater Storage Tanks once yearly. Remove accumulated sludge completely. Inspect interior laminate condition. Repair any damage immediately. Then, return the tank to service.
- Five-Year Major Overhaul: After five years, perform non-destructive testing. Ultrasonic thickness mapping reveals hidden issues. ETP Collection Tanks may need gel coat restoration. We offer refurbishment contracts.
UK Enviro Systems: Your Partner for ETP Tank Suppliers
As leading ETP Collection Tank Manufacturers, we deliver excellence. Our global client list proves our reliability.
- Rapid Turnaround Times: We stock common sizes of ETP Collection Tanks. Small tanks ship within one week. Custom orders take four to six weeks. Emergency replacements get priority production.
- Comprehensive Warranty: Every Effluent Treatment Plant Tanks carries a five-year warranty. This covers material defects and workmanship. We also offer extended service agreements. Hence, your investment stays protected.
- Technical Support After Sales: Our engineers remain available post-installation. We help troubleshoot operational issues. Remote diagnostics solve most problems quickly. For major issues, we dispatch field technicians.
- Sustainable Manufacturing: UK Enviro Systems uses eco-friendly production methods. We recycle all FRP waste. Our Industrial Wastewater Tanks help you achieve sustainability goals. Together, we protect water resources.
Conclusion
ETP Collection Tanks are indispensable for modern industry. They protect environments and enable compliance. UK Enviro Systems manufactures premium FRP solutions. Our technical expertise guarantees performance. We serve as trusted ETP Collection Tank Manufacturers worldwide. Contact us today for your effluent storage needs. Let us design the perfect Effluent Collection Tanks for your plant.
FAQ: Everything You Need to Know About ETP Collection Tanks
An ETP Collection Tank is used to collect and temporarily store industrial wastewater before it enters the Effluent Treatment Plant (ETP). It helps regulate the flow of effluent, prevents overflow, and ensures efficient treatment of wastewater.
FRP ETP Collection Tanks offer superior corrosion resistance, lightweight construction, longer service life, and lower maintenance requirements compared to RCC and steel tanks. They are particularly suitable for storing chemically aggressive effluents.
The ideal tank capacity depends on factors such as daily wastewater generation, peak flow rates, retention time requirements, and future expansion plans. A properly sized tank ensures uninterrupted operation of the effluent treatment system.
ETP Collection Tanks are widely used in industries such as pharmaceuticals, chemicals, textiles, food processing, pulp & paper, electroplating, power plants, and manufacturing facilities where wastewater treatment is required before discharge or reuse.
FRP ETP Collection Tanks provide excellent chemical resistance, high structural strength, leak-proof performance, UV resistance, easy installation, and a long operational lifespan. These advantages make them a cost-effective solution for industrial wastewater management.
