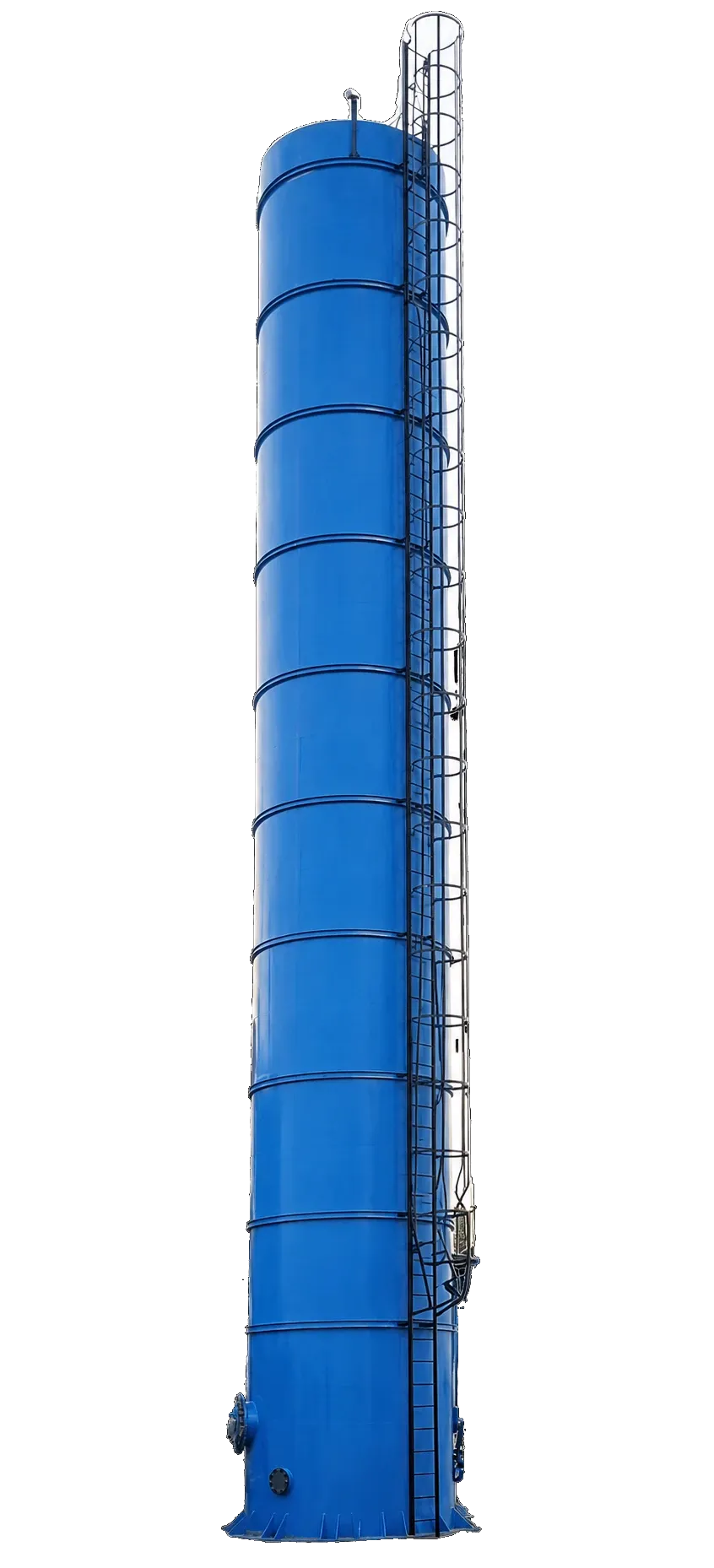

150 KL FRP Bulk Storage Tanks
150 KL FRP Bulk Storage Tanks – Superior Industrial Bulk Storage Solutions
UK Enviro Systems proudly presents our advanced 150 KL FRP Bulk Storage Tanks. These tanks offer exceptional reliability for industrial applications. They handle large volumes of various liquids. Their robust construction ensures long-term performance. Many industries trust these tanks for bulk storage needs. The 150 KL FRP Bulk Storage Tanks resist corrosion effectively. They also provide excellent structural integrity. Therefore, they become the preferred choice worldwide.
Why Choose 150 KL FRP Bulk Storage Tanks for Your Industry?
Industrial operations demand safe storage solutions. The 150 KL FRP Bulk Storage Tanks meet this demand perfectly. They store aggressive chemicals without degradation. They also store potable water safely. Moreover, they handle acids and alkalis efficiently. Their composite construction prevents leaks. Consequently, they protect the environment from contamination. Additionally, these tanks reduce maintenance costs significantly. They do not require frequent painting or lining. As a result, industries save both time and money.
Technical Specifications of 150 KL FRP Bulk Storage Tanks
UK Enviro Systems follows strict engineering standards. We manufacture every 150 KL FRP Bulk Storage Tank with precision. Below are the detailed technical specifications.
Dimensional Parameters
| Parameter | Value |
|---|---|
| Capacity | 150 Kilolitres (150,000 Litres) |
| Typical Diameter | 3,500 mm to 4,200 mm |
| Typical Height | 4,500 mm to 5,800 mm |
| Wall Thickness | 12 mm to 25 mm (design dependent) |
| Bottom Thickness | 15 mm to 30 mm |
Note: Dimensions vary based on specific design requirements.
Material Composition
The 150 KL FRP Storage Tank uses premium raw materials. These include:
Isophthalic polyester resin – for superior chemical resistance
Vinyl ester resin – for high-temperature and aggressive media
E-glass fibre – for excellent tensile strength
C-glass surface veil – for enhanced corrosion barrier
UV stabilizers – for outdoor weathering protection
Antistatic additives – for flammable liquid storage (optional)
The laminate structure consists of three layers. The inner liner provides primary chemical resistance. The structural layer delivers mechanical strength. The outer coating protects against UV radiation and abrasion.
Performance Capabilities
150 KL FRP Bulk Storage Tanks demonstrate outstanding performance metrics:
Operating temperature range: -20°C to +80°C (customizable to +120°C)
Maximum specific gravity: 1.8 (heavier liquids require reinforced design)
Design pressure: Atmospheric to ±500 mm water column
Vacuum rating: Full vacuum with stiffening rings
Corrosion allowance: Zero – FRP does not corrode
Expected service life: 20+ years with minimal degradation
FRP Liquid Storage Tanks of this capacity withstand seismic loads. They also resist wind pressures up to 200 km/h. Their flexibility prevents stress cracking. Hence, they outperform steel and concrete alternatives.
Key Benefits of Using 150 KL FRP Bulk Storage Tanks
150 KL FRP Bulk Storage Tanks offer five major advantages. They resist all corrosive chemicals completely. They weigh 70% less than steel tanks. They never require painting or lining. They last for decades without cracking. They reduce total ownership costs significantly.
Corrosion Resistance and Chemical Compatibility
FRP Chemical Storage Tanks excel in aggressive environments. The 150 KL FRP Bulk Storage Tanks store hydrochloric acid safely. They also store sulphuric acid up to 98% concentration. Furthermore, they handle sodium hydroxide solutions effectively. They resist organic solvents like toluene and xylene. They also store chlorine compounds without pitting. Consequently, no protective lining becomes necessary. This feature reduces upfront costs substantially.
Lightweight Yet Heavy Duty
A steel tank of similar capacity weighs over 10 tonnes. In contrast, our 150 KL FRP Storage Tank weighs only 3 to 4 tonnes. This lightweight nature simplifies transportation. It also reduces crane and rigging expenses. Therefore, installation becomes faster and safer. The tank maintains high strength despite low weight. Its specific strength exceeds that of carbon steel. Hence, it suits rooftop and elevated installations perfectly.
Long Service Life
Heavy Duty FRP Tanks endure harsh conditions for decades. The 150 KL FRP Bulk Storage Tanks resist UV degradation effectively. They also resist fatigue from thermal cycling. Their monolithic construction eliminates seam failures. Traditional welded steel tanks develop cracks over time. Composite Storage Tanks do not suffer this problem. Consequently, owners enjoy lower lifecycle costs.
Applications Across Diverse Industries
150 KL FRP Bulk Storage Tanks serve many industrial sectors. Chemical plants store aggressive raw materials. Water treatment facilities store clean water. Food processors store edible oils safely. Mining operations store leachates and process water.
Chemical Industry Applications
FRP Acid Storage Tanks play a vital role in chemical plants. Our 150 KL FRP Bulk Storage Tanks store raw acids safely. They also store alkaline solutions without reaction. They store brine for chlor-alkali processes. They store ferric chloride for water treatment. Additionally, they store various intermediates and finished products. Chemical engineers prefer FRP for its inert nature. Therefore, product purity remains guaranteed.
Water and Wastewater Treatment
FRP Water Storage Tanks provide clean water storage solutions. Municipalities use 150 KL FRP Bulk Storage Tanks for drinking water. The material does not leach contaminants into water. It also resists biofilm formation. Wastewater treatment plants store effluent in these tanks. They also store sludge and chemical dosing solutions. Industrial FRP Storage Tanks handle aggressive sewage gases too.
Food and Beverage Storage
The food industry requires hygienic storage conditions. FRP Liquid Storage Tanks meet FDA compliance standards. Our 150 KL FRP Bulk Storage Tanks store edible oils safely. They also store fruit juices and syrups. They store dairy products with proper insulation. The smooth inner surface prevents bacterial growth. Cleaning becomes simple with standard CIP procedures. Consequently, food safety regulations remain satisfied.
Other Industrial Sectors
Mining industry – store leachates and process water
Pharmaceutical industry – store purified water and solvents
Textile industry – store dyes and finishing chemicals
Metal finishing – store plating baths and pickling acids
Agrochemical sector – store liquid fertilizers and pesticides
Large Capacity FRP Tanks serve all these applications reliably.
Our Product Details:
Approx. Price: Rs 1.25 Lakh / Piece
Product Details:
| Capacity | Up to 150000 L |
| Material | FRP |
| Style | Vertical |
Other Details:
1. Supplied with fire retardant and ultra violet resistant additives as per specific requirements.
2. Suitable for using highly corrosive chemicals at maximum temperature up to 150 degree centigrade.
Approx. Price: Rs 2 Lakh / Number
Product Details:
| Capacity | 5000-10000 L |
| Color | Blue |
| Weight | 1-100 t |
Features:
Easy to use
Sturdy construction
Robust in design
Approx. Price: Rs 1.5 Lakh / No(s)
Product Details:
| Minimum Order Quantity | 1 No(s) |
| Capacity | 5000-10000 L |
| Storage Material Type | Chemicals/Oils |
| Usage | Storage Tank |
Other Details:
1. Supplied with fire retardant and ultra violet resistant additives as per specific requirements.
2. Suitable for using highly corrosive chemicals at maximum temperature up to 150 degree centigrade.
Manufacturing Excellence by FRP Bulk Storage Tank Manufacturers
UK Enviro Systems ranks among top FRP Bulk Storage Tank Manufacturers. We hold ISO 9001:2015 certification proudly. Our facility uses advanced filament winding machines. Each tank undergoes strict quality checks. We deliver excellence globally.
Quality Control Measures
Every manufacturing stage receives thorough inspection. Raw materials undergo verification before use. Resin samples test for viscosity and gel time. Glass fibres confirm tensile strength. During production, technicians monitor layer thickness continuously. They use ultrasonic testing for laminate integrity. After fabrication, each tank undergoes:
Spark testing – to detect pinholes in the liner
Hydrostatic testing – at 1.5 times design pressure
Barcol hardness testing – to verify cure completion
Visual inspection – for surface defects and dimensional accuracy
FRP Tank Manufacturer certification includes third-party validation. We work with Bureau Veritas and TÜV when required.
Customization Options
Not every installation has identical requirements. Therefore, we offer extensive customization for 150 KL FRP Bulk Storage Tanks:
Vertical or horizontal orientation – as per site constraints
Single or double wall – for secondary containment
Internal baffles – to reduce liquid sloshing
Heating/cooling coils – for temperature-sensitive products
Agitation nozzles – for mixing applications
Multiple manways – for easy internal access
Custom nozzle placement – to match existing piping
Insulation jacketing – for thermal retention
External stiffening ribs – for vacuum service
Vertical FRP Storage Tanks save floor space. Horizontal FRP Tanks suit low-clearance buildings. We design both configurations expertly.
Installation and Maintenance of Composite Storage Tanks
Proper installation ensures optimal tank performance. Prepare a flat and level concrete foundation first. Use a sand mat under the tank bottom. Lift using designated lugs only. Anchor against wind uplift securely.
Site Preparation
Proper installation ensures optimal tank performance. Before delivering the 150 KL FRP Bulk Storage Tank, prepare the foundation. Concrete slabs must be flat and level. They must also support the filled tank weight. A 150 KL water fill weighs 150 tonnes. Hence, soil bearing capacity must exceed 10 tonnes per square metre. Provide a sand or rubber mat under the tank bottom. This mat distributes loads evenly. It also prevents point stress on the FRP.
Lifting and Positioning
Reinforced Plastic Storage Tanks require careful handling. Use only designated lifting lugs or slings. Do not attach ropes to nozzles or manways. Lift the tank slowly and steadily. Position it accurately over the foundation. Then, anchor the tank against wind uplift. Use hold-down lugs with chemical anchors. Alternatively, strap the tank to concrete deadmen.
Cleaning and Maintenance
Cleaning FRP Process Tanks requires compatible chemicals. Avoid strong oxidizers like hydrogen peroxide. Do not use steam above 100°C directly on the surface. Use mild detergents and soft brushes instead. Rinse thoroughly with water after cleaning. For product changeovers, verify chemical compatibility first. Keep maintenance records for warranty purposes.
Regular Inspection Protocols
Industrial Bulk Storage Solutions demand periodic checks. We recommend the following schedule for 150 KL FRP Bulk Storage Tanks:
Monthly visual inspection – check for surface cracks or blisters
Quarterly fitting check – verify tightness of bolted connections
Annual thickness measurement – using ultrasonic gauge
Biennial spark test – confirm liner integrity
Five-year full inspection – internal access and detailed assessment
Corrosion Resistant FRP Tanks show warning signs before failure. Look for discoloration or soft spots. Listen for hissing sounds indicating leaks. Immediately empty the tank if any defect appears. Contact UK Enviro Systems for professional repair.
Why Partner with UK Enviro Systems?
UK Enviro Systems has supplied FRP Industrial Tanks for over fifteen years. Our team understands global industrial challenges. We deliver 150 KL FRP Bulk Storage Tanks to clients across Europe, Asia, Africa, and the Americas. Every tank meets international standards like ASTM D3299 and BS 4994.
- Competitive Advantages: We offer FRP Tank Exporter services with streamlined logistics. Our crating methods protect tanks during ocean freight. We provide complete installation supervision. Our engineers train your staff on proper operation. We also stock spare parts for quick delivery. Furthermore, we offer on-site repair services worldwide.
- Sustainability Commitment: Composite Storage Tanks support green initiatives. FRP manufacturing consumes less energy than steel production. The tanks do not rust or leach harmful substances. At end of life, we recycle the material into filler products. Hence, choosing our 150 KL FRP Bulk Storage Tanks reduces environmental footprint.
- Customer Support: Every purchase includes a standard one-year warranty. Extended warranties cover up to ten years. Our technical helpline operates 24/7. We respond to service requests within 24 hours. Additionally, we provide free compatibility testing for new chemicals. Send us your process fluid details. We will recommend the optimal resin system.
Final Thoughts on 150 KL FRP Bulk Storage Tanks
Selecting the right bulk storage solution impacts operational efficiency. The 150 KL FRP Bulk Storage Tanks from UK Enviro Systems deliver unmatched performance. They combine chemical resistance with mechanical strength. They reduce maintenance burdens significantly. They also offer customization for any industrial need. FRP Bulk Storage Tank Manufacturers like us prioritize quality and safety. We invite you to request a quotation today. Share your specific storage requirements with our team. We will design a 150 KL FRP Storage Tank that exceeds your expectations. Contact UK Enviro Systems now for a consultation.
FAQ: Everything You Need to Know About Storage Tanks
These tanks store acids, alkalis, solvents, water, edible oils, and wastewater. The composite resists corrosion from over 95% of industrial chemicals effectively.
UK Enviro Systems offers a standard one-year warranty. Extended plans cover up to ten years. Properly maintained tanks often operate for 20 to 25 years.
Yes. UV stabilizers in the outer layer prevent sun damage. These tanks withstand rain, snow, and temperature swings from -20°C to +80°C.
Absolutely. UK Enviro Systems positions nozzles, manways, and ladders exactly where you need them. We also add heating coils or baffles upon request.
Use mild detergents and soft brushes. Avoid strong oxidizers and steam above 100°C. Rinse thoroughly with water after every cleaning cycle.
