200 KL FRP Acid Storage Tanks
200 Kl FRP Acid Storage Tanks: The Ultimate Industrial Solution
At UK Enviro Systems, we deliver superior 200 Kl FRP Acid Storage Tanks worldwide. These tanks store aggressive acids safely. They resist corrosion effectively. Industries trust our solutions for long-term reliability. Our 200 Kl Acid Storage Tanks offer unmatched chemical resistance. They protect your valuable assets. You gain peace of mind with our robust designs.
Why Choose 200 Kl FRP Acid Storage Tanks for Your Facility
Industrial facilities need safe acid storage. Steel tanks corrode quickly. Concrete tanks crack over time. 200 Kl FRP Acid Storage Tanks solve these problems perfectly. Fiberglass reinforced plastic (FRP) provides exceptional durability. This material withstands harsh chemicals. It does not rust or degrade. Consequently, your maintenance costs drop significantly. Furthermore, these tanks last for decades. You avoid frequent replacements. Therefore, 200 Kl FRP Storage Tanks become a smart investment.
Superior Chemical Resistance of FRP Material
Acids attack ordinary storage vessels. Hydrochloric acid, sulfuric acid, and nitric acid cause severe damage. However, FRP material resists these chemicals completely. The composite structure blocks permeation. Specifically, the resin matrix protects against corrosive ions. 200 Kl FRP Acid Storage Tanks handle pH levels as low as 0.5. They maintain structural integrity continuously. Thus, you store concentrated acids without fear. Additionally, the tanks resist thermal shock. They perform well in temperature variations. For instance, from -10°C to 80°C safely.
Lightweight Yet Unbreakable Construction
Steel tanks weigh enormous amounts. Transporting them costs heavily. In contrast, 200 Kl Acid Storage Tanks weigh 70% less. This lightweight nature simplifies installation. You save on crane costs. Moreover, the strength-to-weight ratio exceeds steel. FRP composites offer high tensile strength. They absorb impact energy effectively. Hence, accidental collisions cause no leaks. Your facility remains safe always. The material also resists fatigue. Consequently, cyclic loading does not weaken the tank.
Technical Specifications of Our 200 Kl FRP Acid Storage Tanks
Precision engineering defines our tanks. We manufacture 200 Kl FRP Acid Storage Tanks with strict standards. Below are the detailed technical parameters.
Dimensional and Capacity Details
Nominal Volume: 200,000 liters (200 Kl)
Actual Capacity: 210,000 liters (10% freeboard)
Diameter: 3,800 mm (customizable)
Height: 7,200 mm (vertical configuration)
Wall Thickness: 12 mm to 25 mm (varies by acid type)
Bottom Thickness: 15 mm to 30 mm
Top Cover: Dome type with manhole
Weight (empty): Approximately 3,800 kg
Material Composition and Properties
Resin Type: Isophthalic, Vinyl Ester, or Bisphenol-A
Fiberglass: E-glass or C-glass (corrosion-resistant)
Resin Content: 65% to 75% in corrosion barrier
Corrosion Barrier Thickness: 5 mm minimum
Additives: UV stabilizers and flame retardants
Operating Temperature: -20°C to +90°C
Maximum Pressure: Atmospheric or 0.5 bar (customizable)
Mechanical Strength Parameters
Tensile Strength: 180 MPa to 250 MPa
Flexural Strength: 200 MPa to 280 MPa
Compressive Strength: 150 MPa to 200 MPa
Modulus of Elasticity: 10 GPa to 15 GPa
Barcol Hardness: 35 to 45
Design Configurations for Optimal Performance
We offer multiple design options. Each configuration suits specific site conditions. 200 Kl FRP Acid Storage Tanks come in vertical or horizontal orientations. Additionally, we provide custom nozzle placements.

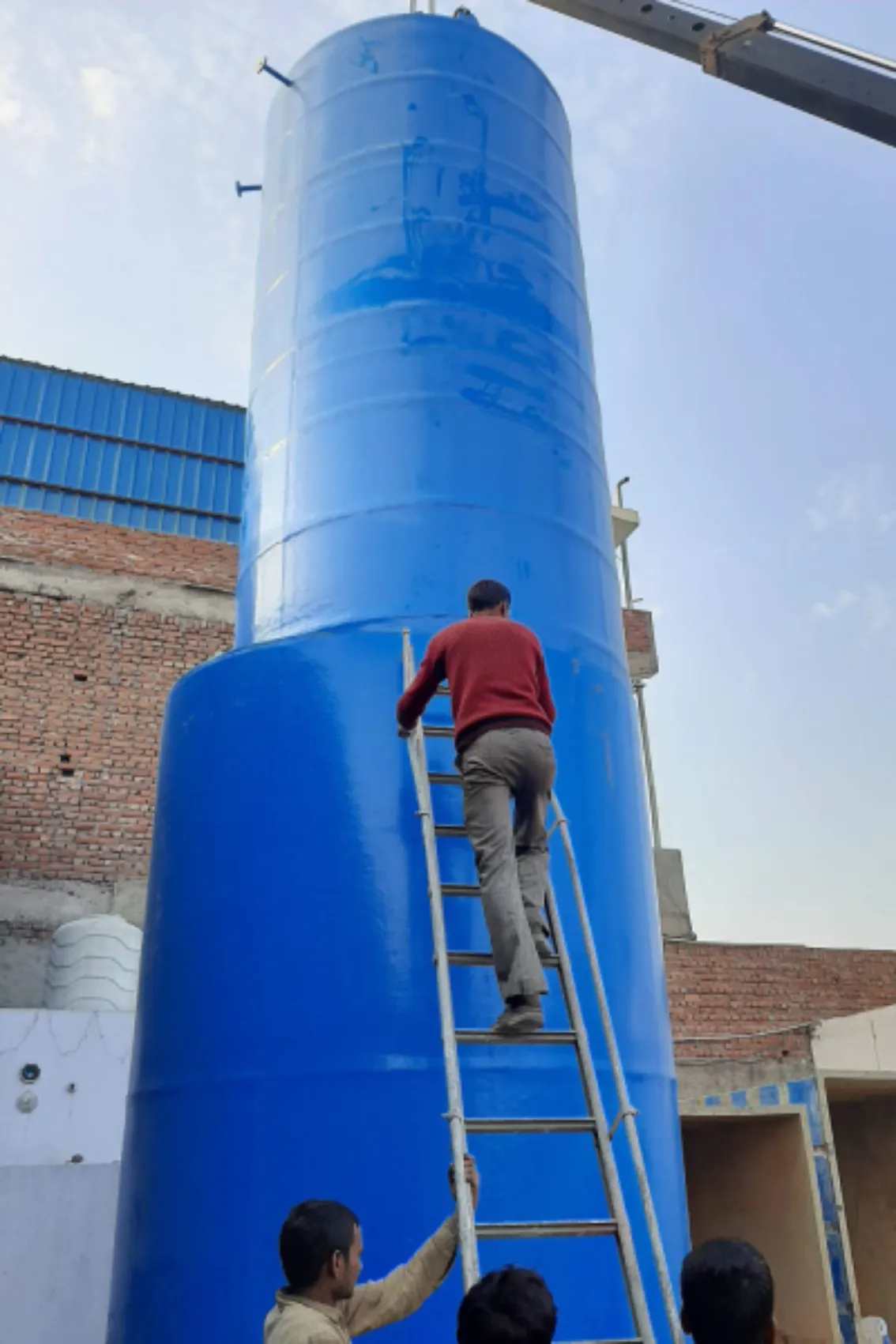

Vertical 200 Kl FRP Acid Storage Tanks
Vertical tanks save floor space. They occupy a small footprint. This design works well for crowded plants. The height-to-diameter ratio maximizes storage efficiency. Gravity assists complete drainage. Furthermore, vertical tanks simplify level measurement. You install ultrasonic or radar sensors easily. The conical bottom eliminates residue buildup. Hence, cleaning becomes straightforward. Our vertical 200KL Storage Tanks include external stiffeners. These prevent buckling under hydrostatic pressure.
Horizontal 200 Kl FRP Acid Storage Tanks
Horizontal tanks suit low-ceiling areas. They rest on saddle supports. This configuration allows easy roof mounting. Pumping operations become simpler. Additionally, horizontal tanks handle dynamic loads better. They resist seismic forces effectively. For mobile applications, we design horizontal 200 Kl FRP Tanks. Truck-mounted versions transport acids safely. The cylindrical shape provides uniform stress distribution. Consequently, thinner walls reduce material costs.
Custom FRP Acid Tanks for Specific Needs
Every industry has unique requirements. We engineer Custom FRP Acid Tanks accordingly. You specify the nozzle size and location. We add internal baffles for mixing. Alternatively, we install heating coils. For cold climates, insulation jackets become essential. Our team designs these features precisely. Thus, you receive a tailored solution. The secondary keyword FRP Acid Storage Tanks Manufacturers reflects our expertise. We manufacture exactly what you need.
Manufacturing Process by Leading FRP Acid Storage Tanks Manufacturers
As premier FRP Acid Storage Tanks Manufacturers, we follow rigorous processes. Quality begins with raw material selection. We source only premium resins and fibers. Then, our skilled technicians apply advanced techniques.
Filament Winding Technology
Most Acid Storage Tanks use filament winding. This process ensures consistent fiber alignment. Computer-controlled machines wind glass fibers. Resin impregnates each strand completely. The result is a seamless tank body. No weak points exist. Consequently, burst strength increases dramatically. Moreover, filament winding achieves precise wall thickness. You get uniform mechanical properties throughout.
Hand Lay-Up for Custom Features
Complex geometries require hand lay-up. Our craftsmen build the corrosion barrier first. They apply multiple resin-rich layers. Then, they add structural laminates. This method creates smooth internal surfaces. Acid flow remains uninterrupted. Additionally, hand lay-up allows embedded fittings. We install thermowells and dip tubes seamlessly. Thus, your 200KL Acid Storage Tanks become fully functional.
Curing and Post-Curing Processes
Proper curing ensures maximum performance. We cure tanks at controlled temperatures. This step cross-links resin molecules completely. Post-curing eliminates residual stresses. As a result, the tank resists cracking. We test every tank after curing. Our FRP Acid Storage Tanks undergo hardness checks. We verify Barcol values meet specifications. Only then do we approve dispatch.
Our Product Details:
Approx. Price: Rs 1.25 Lakh / Piece
Product Details:
| Capacity | Up to 200KL |
| Material | FRP |
| Style | Vertical |
Other Details:
1. Supplied with fire retardant and ultra violet resistant additives as per specific requirements.
2. Suitable for using highly corrosive chemicals at maximum temperature up to 150 degree centigrade.
Approx. Price: Rs 2 Lakh / Number
Product Details:
| Capacity | 150KL-200KL |
| Color | Blue |
| Weight | 1-100 t |
Features:
Easy to use
Sturdy construction
Robust in design
Quality Assurance for Industrial FRP Acid Tanks
Quality is non-negotiable. We implement ISO 9001:2015 certified systems. Each 200 Kl FRP Acid Storage Tank receives thorough inspection. Our FRP Acid Storage Tank testing protocol includes multiple stages.
Raw Material Verification
Incoming resins undergo viscosity tests. Fiberglass rolls get tensile checks. We reject substandard materials immediately. Catalysts and accelerators expire quickly. So, we track batch numbers strictly. Traceability ensures accountability. Hence, every 200 Kl FRP Acid Storage Tank starts with verified inputs.
In-Process Quality Checks
During winding, we monitor tension and temperature. Laser sensors measure wall thickness continuously. Any deviation triggers alarms. We inspect each layer for voids. Air bubbles weaken the structure. Therefore, we use vacuum debulking. For hand lay-up, we check wet-out quality. Rollers remove trapped air systematically. Our inspectors document every parameter.
Final Hydrostatic Testing
Every tank undergoes hydrostatic testing. We fill it with water for 24 hours. Pressure reaches 1.5 times operating pressure. Leak detectors monitor all joints. We observe no weeping or sweating. Then, we drain and inspect internally. A boroscope checks for micro-cracks. Passing this test confirms integrity. Thus, our 200 Kl FRP Acid Storage Tanks arrive ready for service.
Advantages of Acid Resistant FRP Tanks Over Conventional Materials
Acid Resistant FRP Tanks outperform all alternatives. Compare them with traditional options.
FRP vs. Stainless Steel for Acid Storage
Stainless steel corrodes in chloride environments. Pitting and crevice corrosion occur quickly. 200KL FRP Acid Storage Tanks resist these issues entirely. FRP costs 40% less than high-grade alloys. Additionally, FRP does not require cathodic protection. Steel tanks need frequent repainting. FRP surfaces stay maintenance-free. For hydrochloric acid, steel fails within months. FRP lasts over 20 years. Therefore, Acid Resistant FRP Tanks are superior.
FRP vs. Polyethylene (Plastic) Tanks
Polyethylene tanks soften at high temperatures. They cannot handle concentrated sulfuric acid. UV exposure degrades plastic rapidly. In contrast, 200KL FRP Acid Storage Tanks withstand UV radiation. FRP has higher impact strength. Plastic tanks crack under heavy loads. FRP absorbs shock without damage. Furthermore, FRP allows larger capacities. Polyethylene tanks rarely exceed 50 Kl. Our FRP tanks reach 200 Kl easily.
FRP vs. Rubber-Lined Steel
Rubber linings delaminate over time. Acids seep behind the lining. Steel then corrodes unseen. This situation becomes dangerous suddenly. 200KL FRP Acid Storage Tanks have no linings. The entire wall resists corrosion uniformly. Rubber requires expensive application and repair. FRP manufacturing costs less. Moreover, rubber-lined tanks need regular inspections. FRP tanks need minimal monitoring. Hence, Industrial FRP Acid Tanks reduce lifecycle costs.
Applications Across Diverse Industries
200 Kl FRP Acid Storage Tanks serve many sectors. Their versatility drives global demand.
Chemical Processing Plants
Chemical manufacturers store reactive acids. Nitric acid for fertilizer production needs safe containment. 200 Kl FRP Acid Storage Tanks handle this perfectly. Pesticide plants use phosphoric acid. Our tanks resist its corrosive nature. Dye intermediates require sulfuric acid. FRP tanks store it without degradation. Consequently, production never stops due to tank failure.
Metal Finishing and Pickling Lines
Steel pickling uses hydrochloric acid. Plating shops store chromic acid. 200 Kl FRP Acid Storage Tanks provide bulk storage for these processes. The smooth internal surface prevents sludge adhesion. Cleaning cycles become less frequent. Furthermore, our tanks resist the high temperatures of spent acids. Thus, metal finishing operations run efficiently.
Mining and Hydrometallurgy
Mining uses sulfuric acid for leaching. Copper extraction requires huge acid volumes. 200 Kl FRP Acid Storage Tanks deliver reliable storage at remote sites. Their lightweight construction simplifies transport. Off-road locations benefit from easy installation. Additionally, FRP tanks handle abrasive slurries. The composite material resists erosion. Therefore, mining companies prefer our FRP Industrial Storage Tanks.
Water and Wastewater Treatment
Wastewater plants generate acidic effluents. pH adjustment requires chemical storage. 200 Kl FRP Acid Storage Tanks hold ferric chloride or alum. These coagulants are acidic. Our tanks resist their corrosive action. Municipal facilities trust our solutions. We also provide FRP Process Tanks for neutralization systems. Hence, clean water production continues safely.
Safety Features of FRP Vertical Acid Tanks
Safety protects your workforce. Our FRP Vertical Acid Tanks include multiple safety elements.
Leak-Proof Construction
Seamless filament winding eliminates joints. No welds means no weak points. 200 Kl FRP Acid Storage Tanks have integral flanges. We bond nozzles with primary and secondary seals. Consequently, leaks become impossible. Double-walled options add extra protection. The interstitial space monitors for breaches. You get early warnings of any failure.
Fire Retardant Properties
Standard FRP burns slowly. However, we add halogenated resins. These create Acid Resistant FRP Tanks with flame spread ratings under 25. Our tanks meet ASTM E84 Class 1 standards. They self-extinguish when flames remove. Thus, fire hazards reduce significantly. Chemical plants near ignition sources remain safe.
Overfill Prevention Systems
We install high-level alarms on request. These systems shut feed pumps automatically. 200 Kl FRP Acid Storage Tanks include overflow ports. Emergency vents release pressure during overfilling. Our FRP Horizontal Storage Tanks also feature spill containment basins. Consequently, environmental contamination never occurs.
Maintenance Guidelines for Large Capacity FRP Acid Storage Tanks
Proper maintenance extends tank life. Follow these simple practices.
Regular Visual Inspections
Inspect Large Capacity FRP Acid Storage Tanks monthly. Look for surface crazing or discoloration. Check for impact damage near walkways. Use a flashlight to examine internal surfaces. Small scratches need immediate repair. We provide repair kits for quick fixes. Therefore, minor issues become major never.
Cleaning Procedures
Drain and rinse 200 Kl FRP Acid Storage Tanks annually. Use water or mild alkaline solution. Avoid abrasive tools during cleaning. Soft brushes preserve the gel coat. Do not use steam above 100°C. High heat softens resin slightly. For stubborn deposits, use chemical cleaners compatible with FRP. Rinse thoroughly afterward. Hence, your tank remains like new.
Nozzle and Gasket Checks
Bolted connections loosen over time. Check flange bolts every six months. Retorque to specified values. Replace gaskets if leaks appear. Use Viton or PTFE gaskets for acid service. Rubber gaskets degrade quickly. Similarly, inspect manway covers for seal integrity. Tighten handwheels firmly. Thus, FRP Acid Holding Tanks stay sealed perfectly.
Why UK Enviro Systems Stands Among Top FRP Storage Tank Exporters
We rank among leading FRP Storage Tank Exporters globally. Our reputation stems from excellence.
Decades of Engineering Experience
UK Enviro Systems has 25+ years in composite storage. Our engineers understand acid chemistry deeply. We design 200 Kl FRP Acid Storage Tanks for real-world conditions. Every project teaches us new insights. Consequently, we continuously improve our products. You benefit from proven designs.
Global Shipping and Installation Support
We export to 40 countries. Our logistics team packs 200 Kl FRP Acid Storage Tanks securely. Containers protect against transit damage. For oversized tanks, we ship in sections. On-site assembly instructions accompany each delivery. Alternatively, we send supervisors for installation. Thus, your tank operates quickly.
Certification and Compliance
Our FRP Storage Tank Exporters credentials include CE marking. We comply with ASME RTP-1 standards. BS 4994 and EN 13121 certifications apply. These ensure design safety. Third-party inspections come optional. Bureau Veritas or TUV can witness testing. Hence, regulators approve your installation easily.
Customization Options for Composite Material Storage Tanks
Composite Material Storage Tanks offer unlimited customization. We tailor each 200 Kl FRP Acid Storage Tank to your process.
Color Coding for Safety
Choose any RAL color for your tank. Yellow indicates acid storage. Blue denotes neutral chemicals. Red signals flammable contents. Colors integrate into the gel coat. They never fade or peel. Consequently, visual hazard communication improves. Workers identify contents from distance.
Integrated Agitation Systems
Some acids require mixing. We install internal baffles and nozzles. Side-entry mixers mount on our 200 Kl FRP Acid Storage Tanks. Alternatively, we provide eductors for circulation. Compressed air spargers blend heavy acids. These features prevent stratification. Thus, concentration remains uniform.
Insulation and Heating Jackets
Cold climates freeze concentrated acids. We add polyurethane foam insulation. Thickness ranges from 50 mm to 150 mm. Electrical heat tracing keeps contents fluid. Steam coils maintain temperature during winter. Our FRP Horizontal Storage Tanks accept bolt-on heating panels. Consequently, your acid never solidifies.
Long-Term Cost Benefits of FRP Industrial Storage Tanks
Investing in FRP saves money over time. Analyze the total cost of ownership.
Reduced Maintenance Expenditure
Steel tanks need sandblasting and relining every 5 years. This costs thousands. 200 Kl FRP Acid Storage Tanks need only annual inspections. No painting, no relining. Maintenance labor costs drop by 80%. Moreover, spare parts inventory shrinks. Gaskets and bolts are the only consumables. Thus, your budget stretches further.
Extended Service Life
Our FRP Acid Storage Tanks last 25 to 30 years. Steel tanks in acid service last 8 to 10 years. Replacing tanks frequently disrupts production. FRP avoids such interruptions. The composite material does not fatigue chemically. Therefore, one purchase serves three decades. Your ROI becomes exceptional.
Lower Insurance Premiums
Insurers recognize FRP safety advantages. 200 Kl FRP Acid Storage Tanks have excellent loss records. Leak incidents occur rarely. Consequently, liability premiums reduce. Some companies save 15% annually. Additionally, environmental compliance avoids fines. Hence, FRP pays for itself repeatedly.
Secure Your Acid Storage with UK Enviro Systems
You need reliable acid storage solutions. 200 Kl FRP Acid Storage Tanks from UK Enviro Systems deliver excellence. Our products resist corrosion completely. They require minimal maintenance. Technical specifications meet global standards. As leading FRP Acid Storage Tanks Manufacturers, we customize every detail. Safety features protect your team. Long service life ensures profitability. Contact us today for a quotation. Experience the difference of premium Composite Material Storage Tanks. Choose FRP Vertical Acid Tanks or FRP Horizontal Storage Tanks based on your space. Trust FRP Storage Tank Exporters with decades of expertise. Upgrade to Large Capacity FRP Acid Storage Tanks now. Your operations deserve the best.
FAQ: Everything You Need to Know About Storage Tanks
Our nominal capacity is 200 Kl (200,000 liters). We add 10% freeboard, so the actual overflow capacity reaches 210,000 liters. This extra space prevents spills during filling.
Yes. Our 200 Kl FRP Acid Storage Tanks use vinyl ester resin. This material resists 98% sulfuric acid perfectly. Operating temperature must stay below 50°C for this concentration.
Standard production takes 4 to 6 weeks. Shipping adds 2 to 4 weeks internationally. Expedited orders finish in 3 weeks. We coordinate with your project schedule closely.
Absolutely. We supply detailed drawings and step-by-step manuals. Our engineers offer remote video support. On-site supervision is available at an additional cost for complex installations.
We provide a 5-year comprehensive warranty against manufacturing defects. The corrosion barrier carries a 10-year guarantee. Normal wear from mechanical impact is excluded from coverage.
